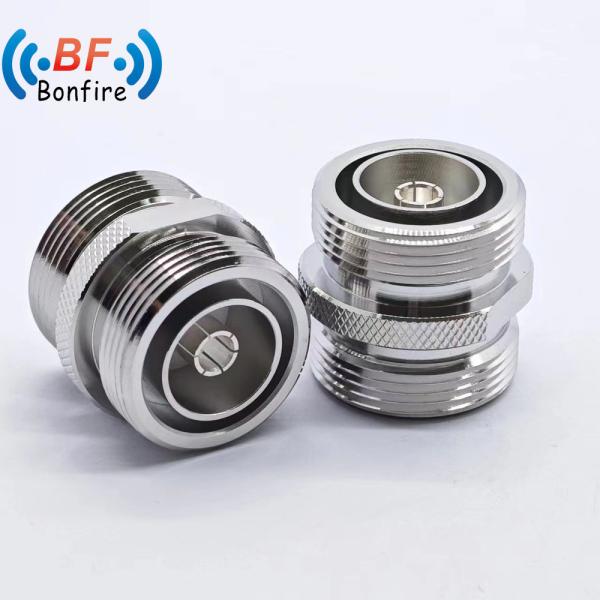

Package Gross Weight 0.210kg RF Adapter with DIN Female to DIN Female Straight Type

Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type

FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.

Specifications:
Electrical
Characteristic Impedance50 ohm
Frequency RangeDC-4GHz
VSWR≤1.2
PIM≤-155dBc
Insertion Loss≤0.25dB
Dielectric Withstanding Voltage≥2500V RMS,50hz,at sea level
Working Voltage1000V RMS,50Hz,at sea level
Dielectric Resistance5000MΩ
Contact ResistanceCenter Contact≤0.4mΩ
Outer Contact≤0.4mΩ
Environmental & Mechanical
Temperature Range-45ºC ~ +85ºC
Waterproof RateIP 67
Durability≥500 cycles
ROHS compliantFull ROHS compliance
Material and Plating
MaterialPlating
BodyBrassTri-alloy
InsulatorPTFE-
Center conductorBrass(Male)
(Female)
Ag
Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type

Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight TypeHot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight TypeHot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type
Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type
Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type
Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type
Hot Sale RF Connector -155dbc DC-4GHz Low Vswr RF Adapter with DIN Female to DIN Female Straight Type

All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .

Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !
