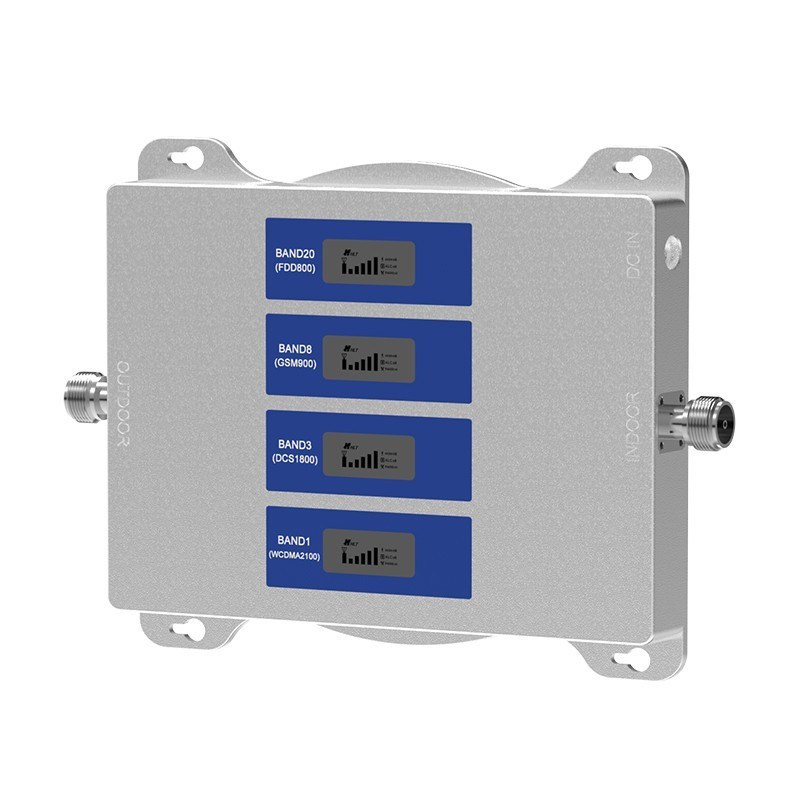

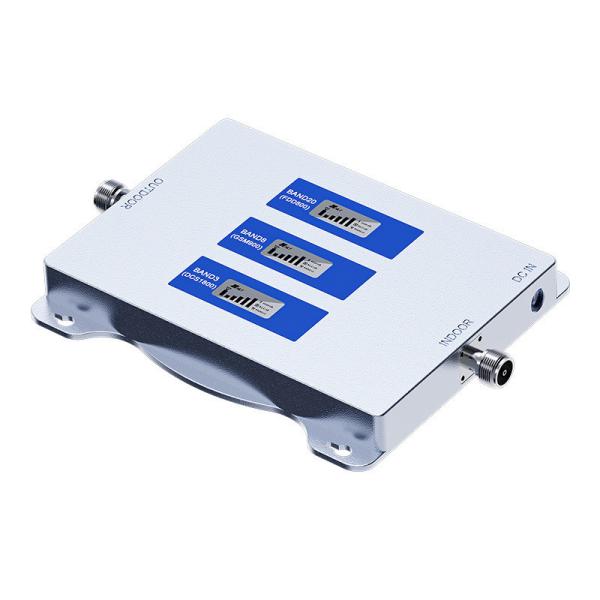

Frequency | 700+900+1800+2100+2600 |
| Weight | 1.5kg |
| Max output power | Uplink 15±2dbm Downlink 20±dbm |
| ALC Automatic Level Control. | >=20±2db |
| Gain | Uplink 60±3db Downlink 65±3db |
| VSWR. | 2:1 |
| Noise Figure. | <=6db |
| Spurious Radiation. | 9khz~1ghz≤-36dbm/1ghz~12.5ghzs-30dbm |
| Connector Type | N-Female |
| Resistances | 50Ω |
| Operating Temperature. | -10~+55C |
| Power Supply | AC220V/DC5V2A |
| Size | 182*158*21(mm) |
| Covered area | 1200 (Max) |
| Number of indoor antennas | 2-5 |
Installation Precautions1. When installing the outdoor antenna, the location of the outdoor
antenna must be able to receive a good signal, indoor call quality,
it is best to achieve the same outdoor antenna location.
2. The indoor antenna, i.e. the re-transmitted signal, cannot be
received by the outdoor antenna, and the distance between the
indoor antenna and the host should be more than 1 metre and above.
3. In the installation process, the less wire you use, the better,
more wire loss.
4. The distance between the indoor and outdoor antennas,
multi-layer walls at least 5 metres apart, the middle of the
blocking less than at least 10 metres above.
5. city installation outdoor try not to use yagi antenna, city
outdoor signal has been very strong, please use a flat antenna or
ceiling antenna
6. Alternative, because the flat panel ceiling performance
indicators are better than Yagi antenna, and directionality is not
particularly strong.
Yagi also affects the cityscape. If the base station is far away
from the installation site, you can choose to use Yagi antenna.
If the base station is far away from the place where it is to be
installed, you can choose to use Yagi antenna.
7. When the equipment is very close to the base station, the
outdoor antenna can not be directly opposite to the base station
antenna, at this time, it is best to use the ceiling or small
antenna to install in the position where you can not see the base
station.
