    N-F Directional Coupler 698-4000MHz Black Package Gross Weight 0.200kg 06/07/08/10/15dB

    Ask Lasest Price
    Supply Ability : 2000000PCS/Year
    Delivery Time : Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
    • Product Details
    • Company Profile

    N-F Directional Coupler 698-4000MHz Black Package Gross Weight 0.200kg 06/07/08/10/15dB

    Product Description

    • Wide frequency band, wide coverage.
    • PIM optimized design.
    • Ideal for all kind of DAS applications.
    • Low insertion loss.
    • High power handling.
    • Small size, Low weight.
    • Good stability.

    Product Specifications

    Frequency Range(MHz)698-4000
    PN. (XX is)03050607081012
    Coupling(dB)356781012
    Coupling Loss (dB)±0.8±0.8±0.8±0.8±1.0±1.0±1.0
    Insertion Loss (dB)≤3.8≤2.3≤1.76≤1.47≤1.42≤0.96≤0.94
    Isolation (dB)≥21≥23≥24≥25≥26≥28≥30
    VSWR≤ 1.3
    PIM3 (dBc@2*43dBm)≤ -160
    Input Power(W)300
    Impedance(Ω)50
    RF Connector4.3-10 F
    ColorBlack
    Relative humidity5%~95%
    Operating Temperature(°C)-35 ~ +75
    ApplicationsIndoor/Outdoor(IP65)

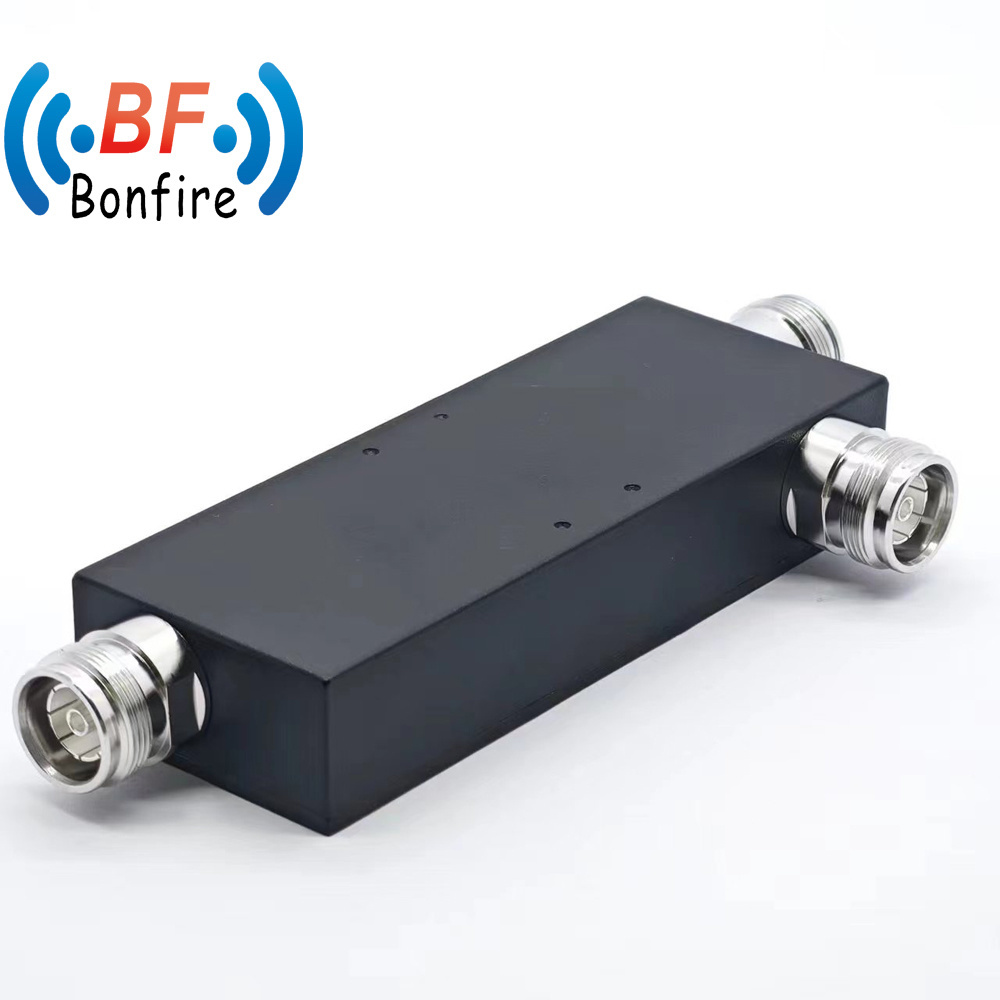

    Related photos

    Coupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dBCoupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dBCoupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dB

    Coupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dB
    Coupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dB

    Coupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dB

    Coupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dBCoupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dBCoupler 698-4000MHz N-F Directional Coupler 06/07/08/10/15dB
