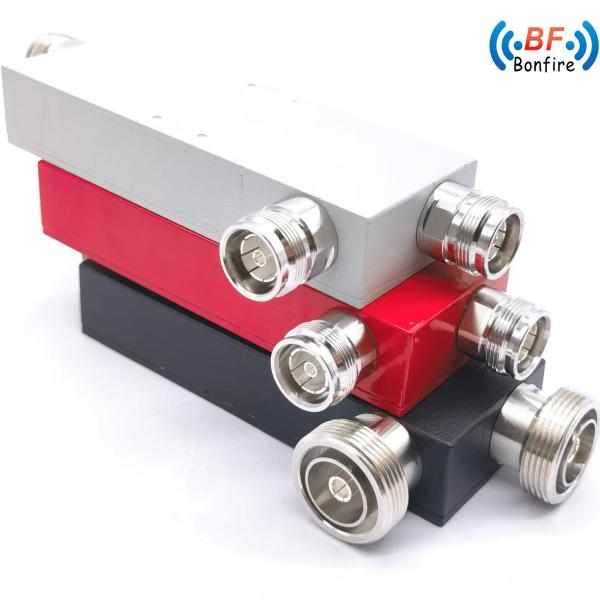

    350-3800MHz Directional Coupler Communication Couplers for DAS See Below Data Table

    Ask Lasest Price
    Supply Ability : 1000000PCS/Year
    Delivery Time : Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
    • Product Details
    • Company Profile

    350-3800MHz Directional Coupler Communication Couplers for DAS See Below Data Table


    350-3800MHz Directional Coupler Communication Couplers for DAS
    FEATURES:
    ★Wide frequency band, wide coverage.
    ★PIM optimized design.
    ★Ideal for all kind of IBS/DAS/PDAS applications.
    ★Low insertion loss.
    ★High power handling.
    ★Small size, Low weight.
    ★Good stability.
    Specifications:

    Frequency Range(MHz)350-3800
    Coupling(dB)5671013152030
    Coupling Loss (dB)±1.3±1.3±1.3±1.5±1.5±1.5±1.8±2
    Insertion Loss (dB)≤2.3≤1.76≤1.47≤0.96≤0.6≤0.44≤0.34≤0.3
    Isolation (dB)≥23≥24≥25≥28≥31≥30≥35≥45
    VSWR≤ 1.3
    PIM3 (dBc@2*43dBm)≤-160
    Input Power(W)500
    Impedance(Ω)50
    RF ConnectorDIN-F
    ColorBlack
    Relative humidity5%~95%
    Operating Temperature(°C)-35 ~ +75
    ApplicationsIndoor/Outdoor(IP65)

    350-3800MHz Directional Coupler Communication Couplers for DAS350-3800MHz Directional Coupler Communication Couplers for DAS350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS

    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS
    350-3800MHz Directional Coupler Communication Couplers for DAS

    All our products can satisfy :
    1: Customized Color (Black, Red, Grey, Golded,etc.)
    2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
    3: Trial order accepted to prove our superior quality
    4: OEM/ODM available .
    5: Product Lead: delivery within 4 weeks for mass production
    6: Unbeatable price to support you win the bid
    All our products category :
    RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
    We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
    Customers we served :
    HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

     Cooperate Once, Replace Never !
