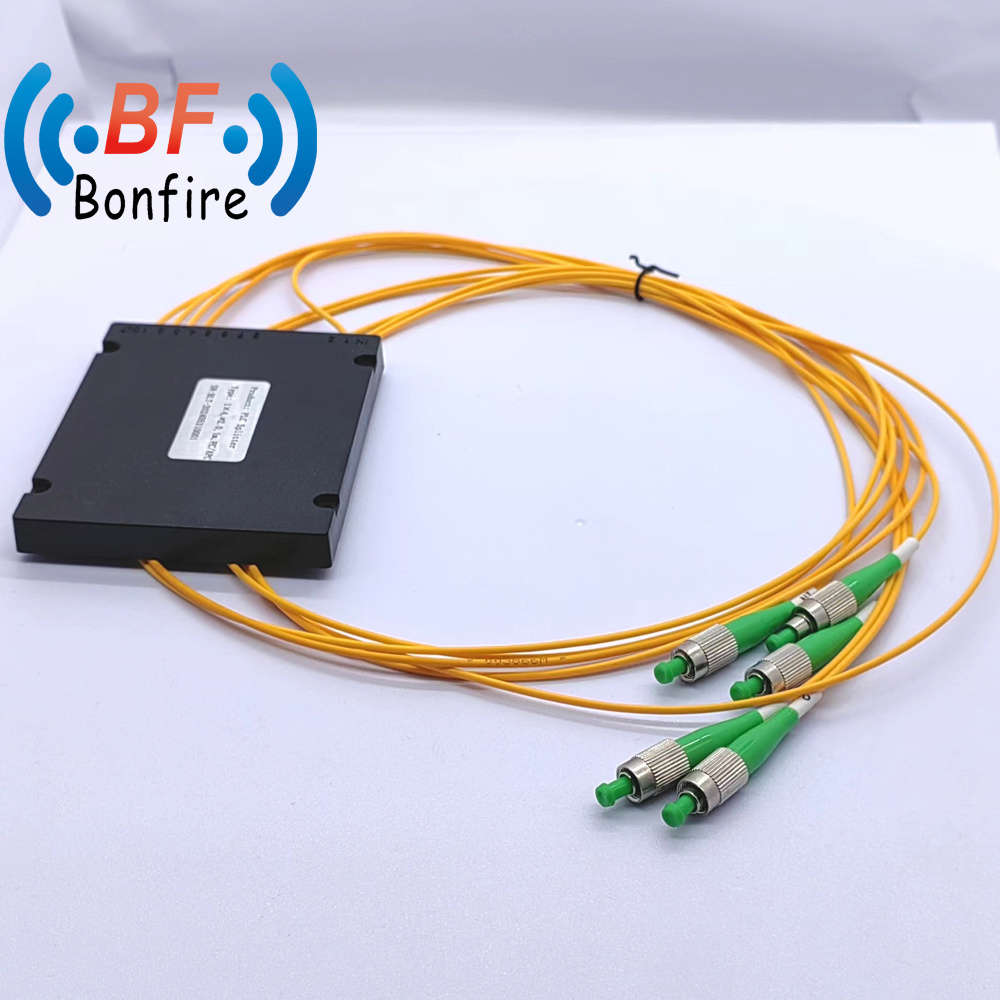

1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm

Anhui Bonfire Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers

    Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers
    • Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers
    • Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers
    • Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers
    • Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers
    • Buy cheap 1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm from wholesalers

    1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm

    Ask Lasest Price
    Supply Ability : 50000/Year
    Delivery Time : Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
    • Product Details
    • Company Profile

    1*4 Single Mode PLC Splitter 0.500kg with Package Size 25.00cm * 20.00cm * 10.00cm

    Feature

    Excellent mechanical

    High reliability and stability

    Low polarization dependent loss

    Good uniformity and low insertion loss

    Application

    FTTX system

    Test equipment

    Passive optical networks

    Local area network

    1 × N PLC Optic Splitter Specification
    OperatingWavelength(μm)
    1260~1650
    Port Configuration
    1×2
    1×4
    1×8
    1×16
    1×32
    Insertion Loss (dB)
    3.6
    7.5
    10.2
    13.5
    16.9
    Loss Uniformity (dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    Polarization Dependent Loss (dB)
    0.2
    0.2
    0.2
    0.25
    0.3
    Wavelength Dependent Loss (dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    Temperature Dependent Loss(-40~85) (dB)
    0.4
    0.4
    0.4
    0.5
    0.5
    Returm Loss (dB)
    55/50
    Operating Temperature (ºC)
    -40~+85
    Directivity (dB)
    ≥55
    Storage Temperature (ºC)
    -40~+85
    1*4 Single Mode PLC Splitter1*4 Single Mode PLC Splitter1*4 Single Mode PLC Splitter1*4 Single Mode PLC Splitter1*4 Single Mode PLC Splitter
